Chester Tech Repairs

5G Chester Direct Connect Turbo Booster 📶 - Sim M.2 to RJ45 Standalone Modem - Web UI - Tailscale Ready

5G Chester Direct Connect Turbo Booster 📶 - Sim M.2 to RJ45 Standalone Modem - Web UI - Tailscale Ready

Regular price $695.00 USD
Regular price $695.00 USD Sale price $695.00 USD
Sale Sold out
Shipping calculated at checkout.
Qualcomm Modem

Turbo Booster - Standalone MODEM

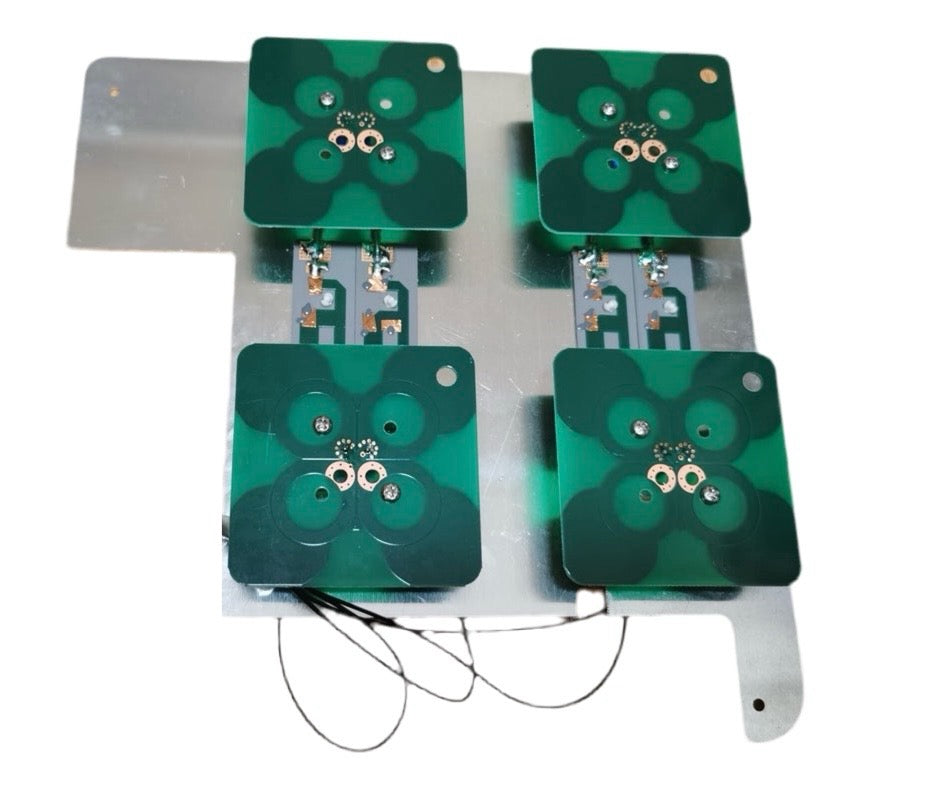

4x4 Antenna with a Modem Inside

POE POWERED

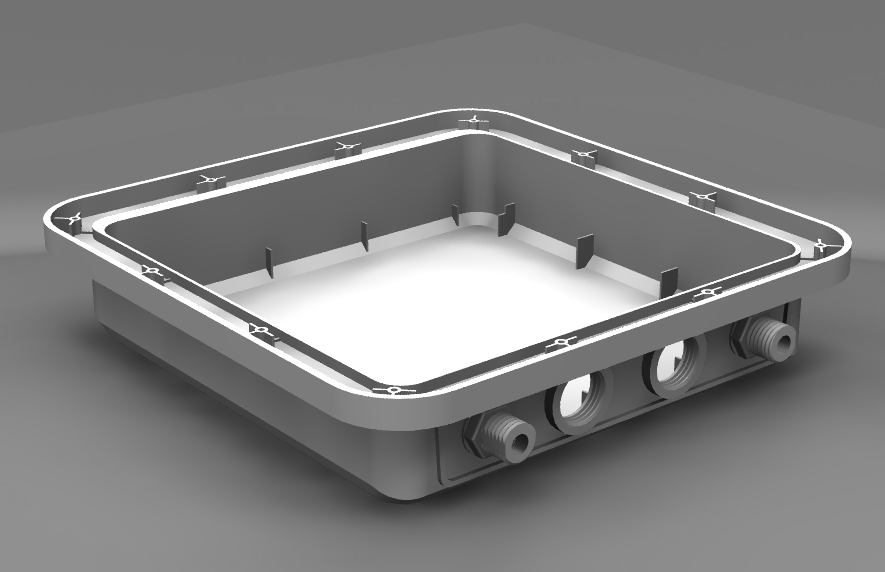

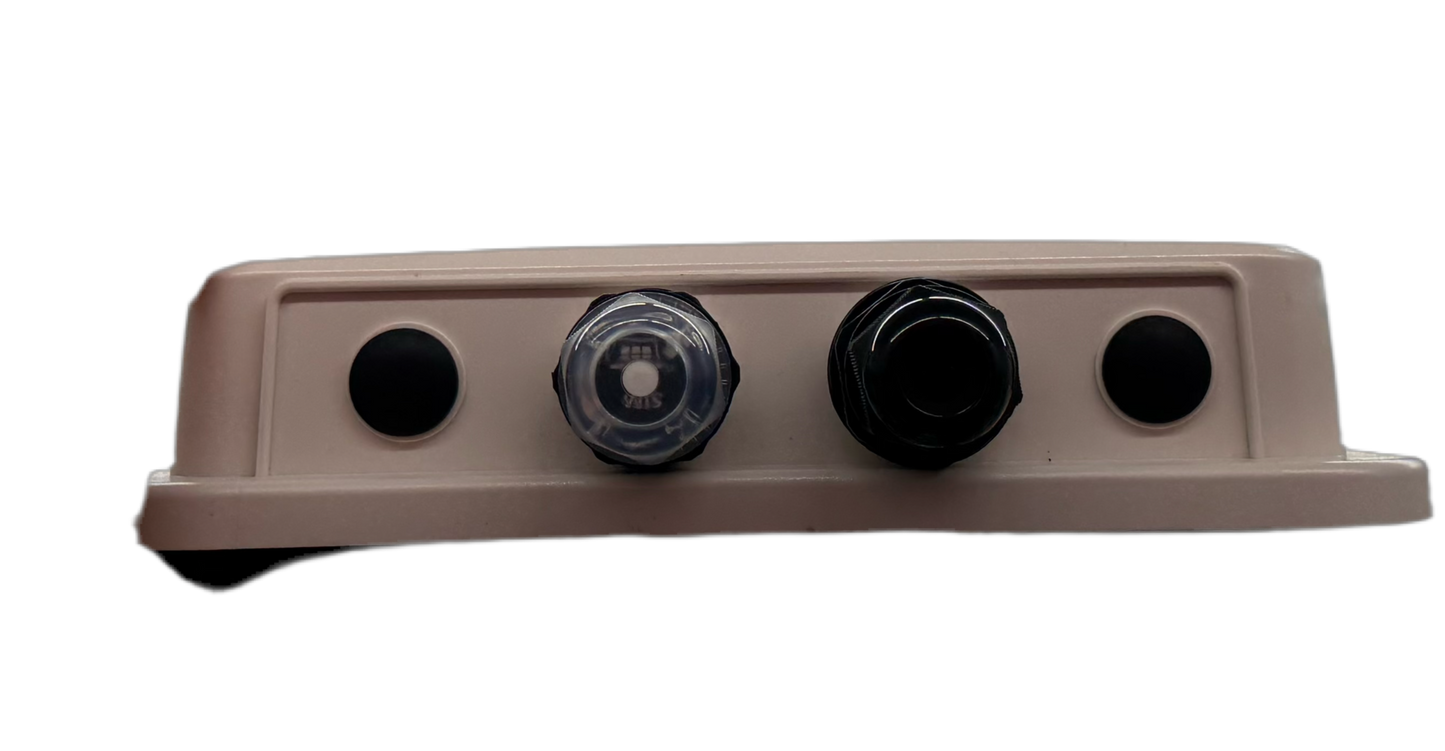

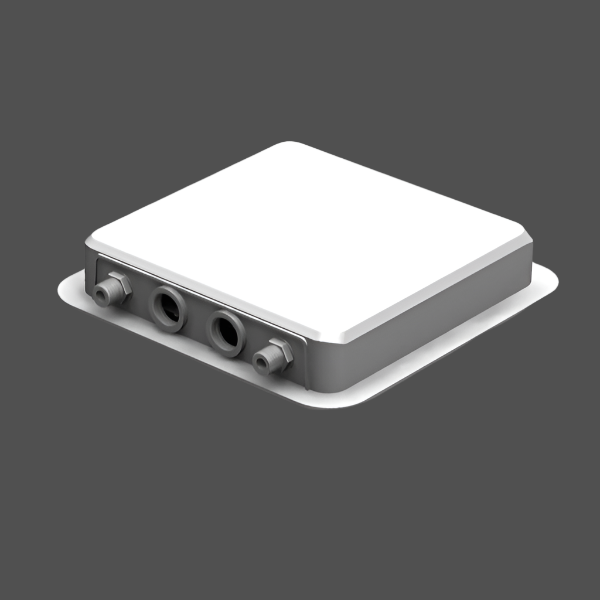

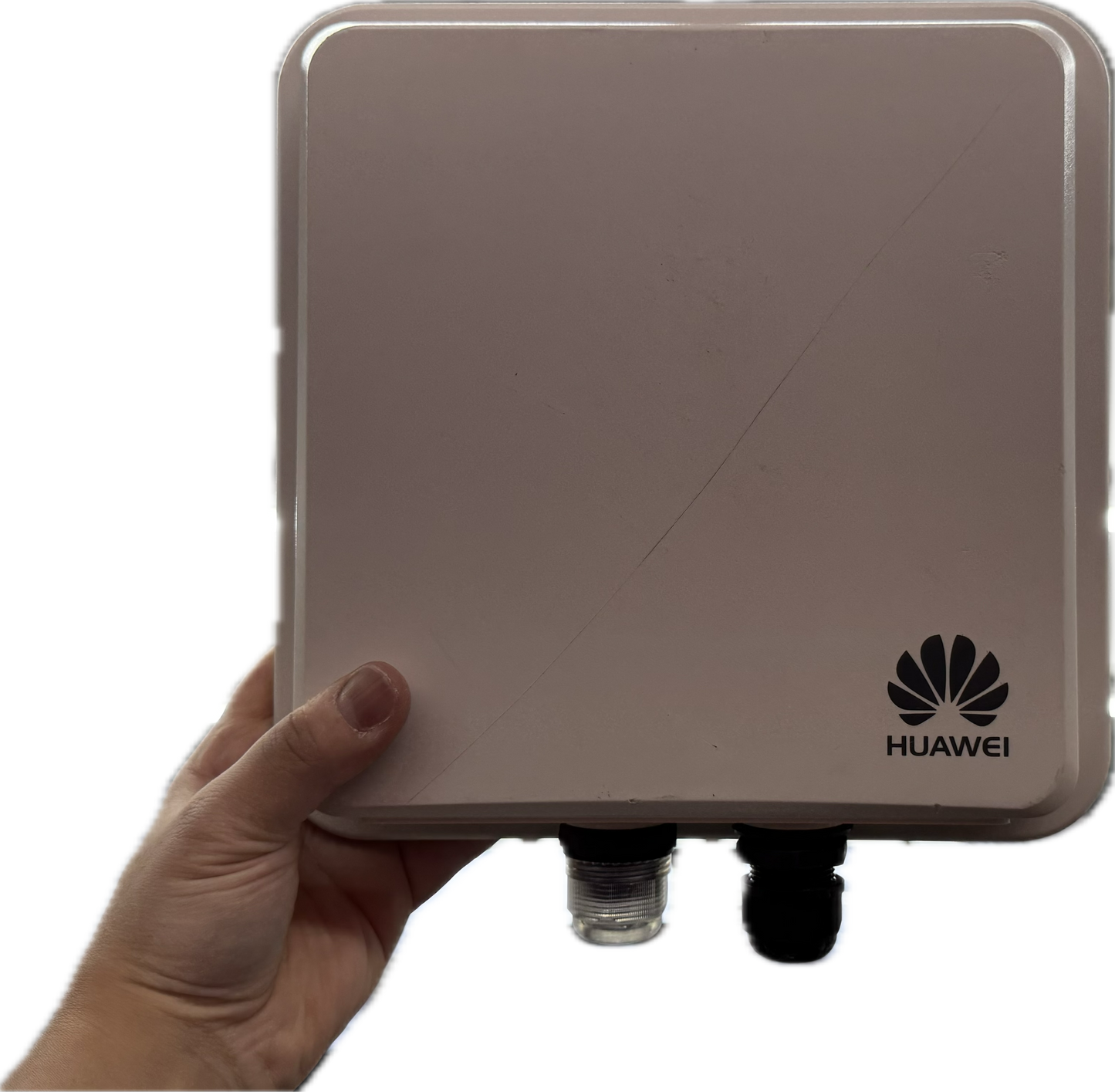

This enclosure is a used weatherproof box that has been repurposed to be a custom 5G 4x4 antenna with a modem/rj45 kit… all plastic enclosures have superficial marks but they have never been mounted outside

Ships in 1-2 Business Days after you order

SDX75 INFO (OPENWRT22 User Interface)
https://chestertechrepairs.com/pages/quectel-sdx75-rm551e-manual-setup

Qualcomm Snapdragon X62 X65 or X75
2.5gbps Ethernet POE LAN

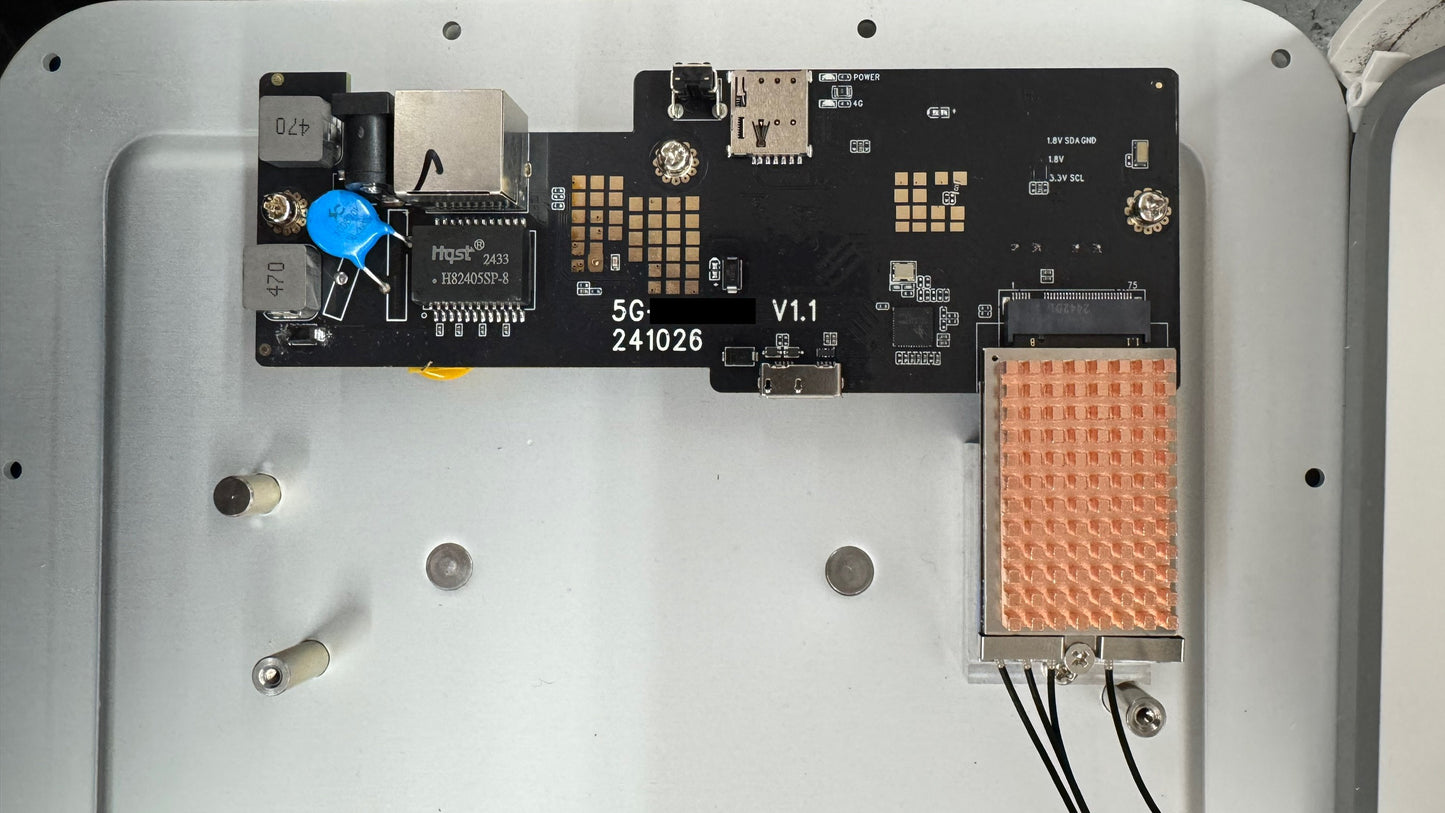

Cellular IP Passthrough Board

The ultimate - BRING YOUR OWN ROUTER - NR5G Kit


NOTE: THIS DOES NOT SUPPORT BRIDGE MODE

Chester Tech Exclusive - SDX75 - RM551E-GL
RM520N-GL SDX62

NOTE: ENCLOSURE ONLY ORDER DOES NOT INCLUDE ANTENNAS NOR POWER SUPPLY (NO RETURNS ON THE ADAPTER ALONE)



MAIN CHESTER DIRECT CONNECT FEATURES

  • Tailscale Installed
  • IP Passthrough capable (IPPT)
  • web ui for both x62 x65 x75
  • x75 is OPENWRT/Luci
  • x62/x65 is OpenSource Simple Admin
  • kit includes POE power supply
  • CNC heat dissipation with thermal pads
  • 1 x 2.5gbE POE Port
  • Realtek RTL8125
  • SSH Ready
  • AT Commands



Upon your purchase you get my support, jump on live chat pre and post purchase. This product was brought to market because of inquiries I’ve received asking for ip passthrough. This is a semi plug and play solution, most folks will need to do APN and Revise IMEI.
